1. TECHNICAL PARAMETERS
Measuring
medium: dry gas
Material:
Chip
-- Imported chip
Threaded
connection - φ 8 pagoda nozzle
Housing
-- Aluminum
Display
housing --ABS engineering plastic (digital tube display)
Pressure
range :-10KPa~0~10KPa
Pressure
mode: gauge pressure
Output
signal :
4~20mA,
0~10V,
0~5V, 1~10V, 1~5V,
0.5~4.5V(customized)
RS485(Standard
Modbus-RTU protocol)
Power
supply voltage :12~36VDC (Unconventional customization)
Accuracy
class :0.5%FS
Working
conditions:
Medium
temperature -10~70℃
Ambient
temperature -20~85℃
Ambient
humidity 0%~95%RH (no condensation, no condensation)
Temperature
compensation -10~70℃
Seismic
performance :10g(20... 2000HZ)
Overload
capacity :200% range
Response
frequency: analog signal output ≤500HZ, digital signal output ≤ 5HZ
Stability:
±0.1%FS/ year
Temperature
drift :±0.01%FS/℃(within the temperature compensation range)
Protection
class : IP54
Maximum
power : ≤0.02Us(W)

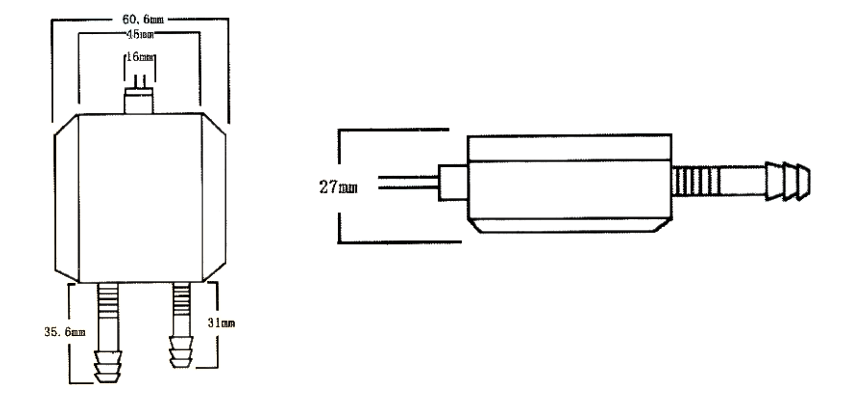

2. PRODUCT SIZE

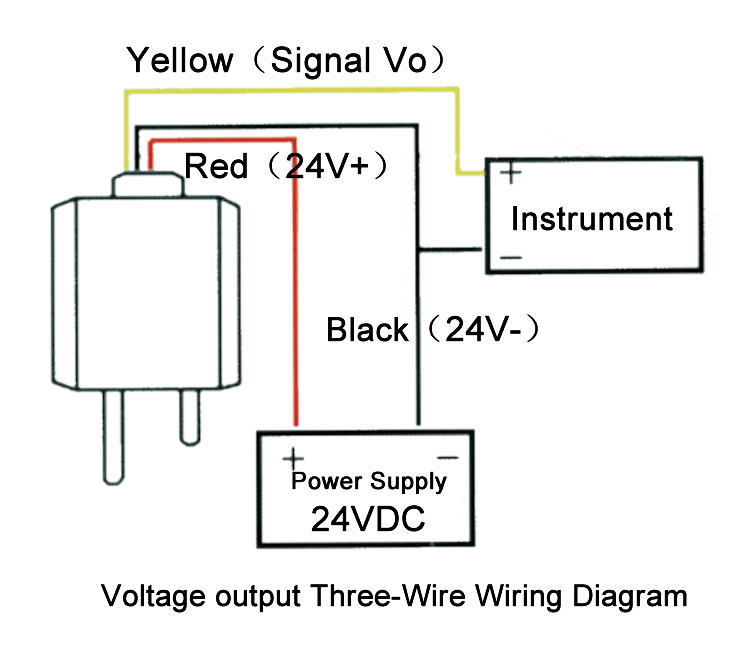

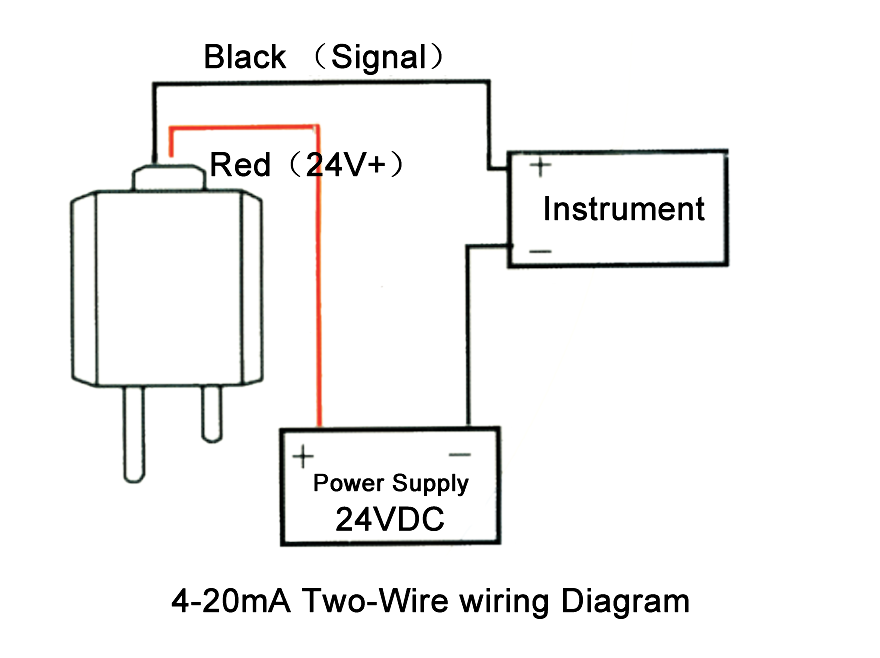

3. WIRING
