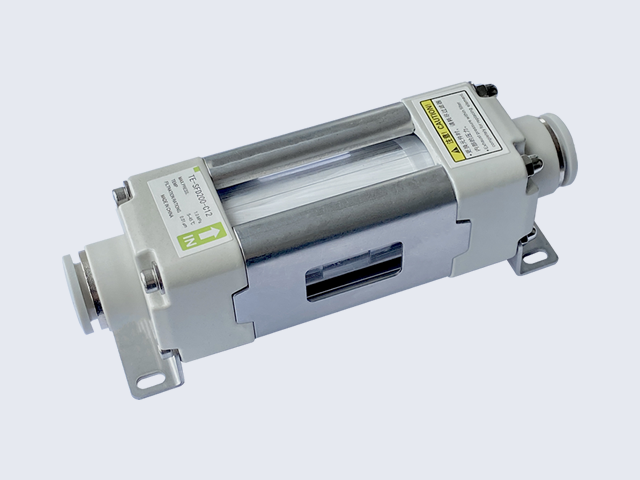

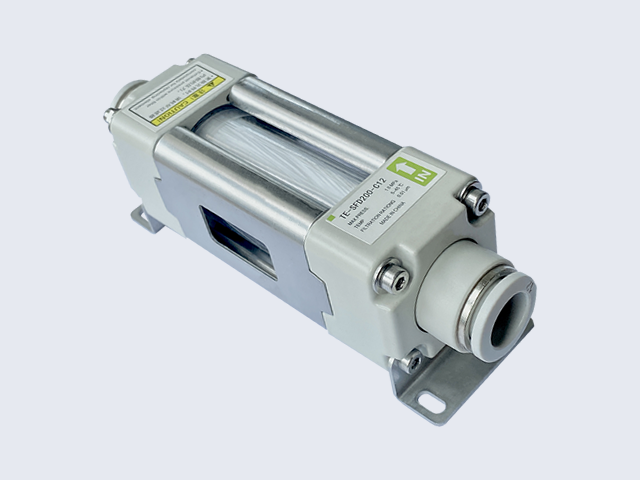

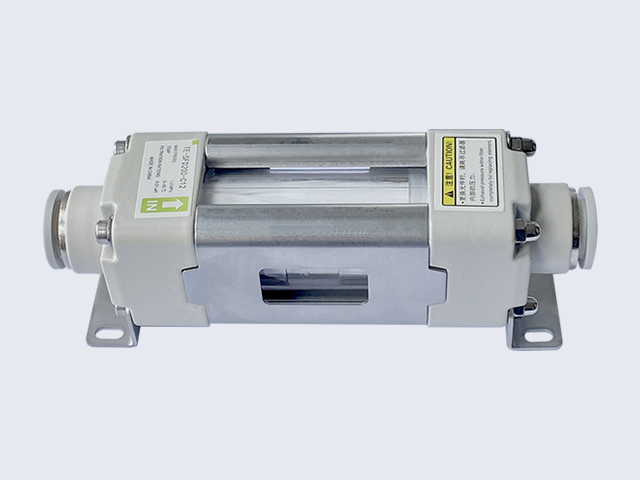

TE-SFD200 Clean Air filter
TE-SFD200 Clean Air filter

Clean Air filter

TE-SFD series

(Hollow fiber filter element)


● Filtration accuracy: 0.01μm (capture efficiency 99.99%)

● Initial pressure drop: 0.03MPa (import pressure 0.7MPa, maximum flow rate)

● Maximum operating pressure: 1.0MPa (at 20℃)



Single-use type (filter cartridge not replaceable)

Clamping type (with replaceable filter element)

Air flow L/min

~60

~80

~100

~300

~400

~500

Port

One-touch fitting

o4

o6

o8

o8

o10

o12

Internal thread

-

-

Rc1/4,G1/4

NPT1/4

-

-

Rc1/4,G1/4

NPT1/4

Shell material

Resin

Resin

Fluid

Air，（Nitrogen）

Filtration rating

0.01μm(99.99%)

Initial pressure loss

0.03MPa or less (at primary pressure of 0.7MPa and max. air flow capacity)

Maximum operating pressure（at 20℃）

1.0 Mpa（0.99MPa for nitrogen）

Operating temperature

5-45 ℃


Note: The clean air filter is designed to remove solid particles and cannot be used for the separation of water and oil.
