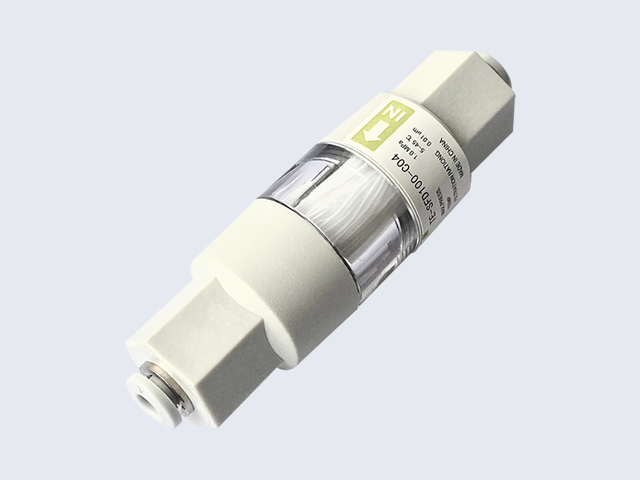

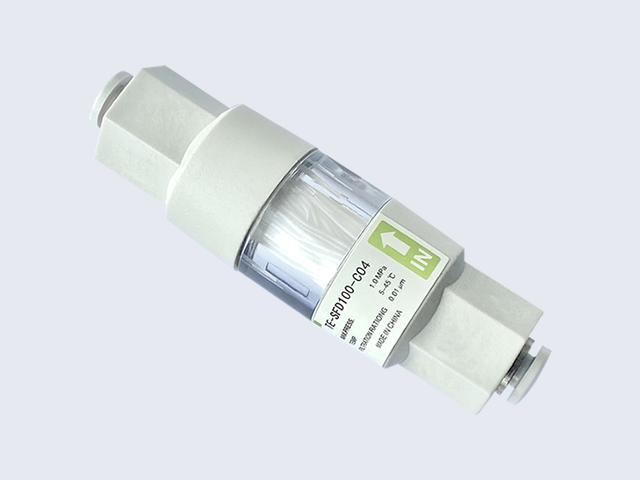

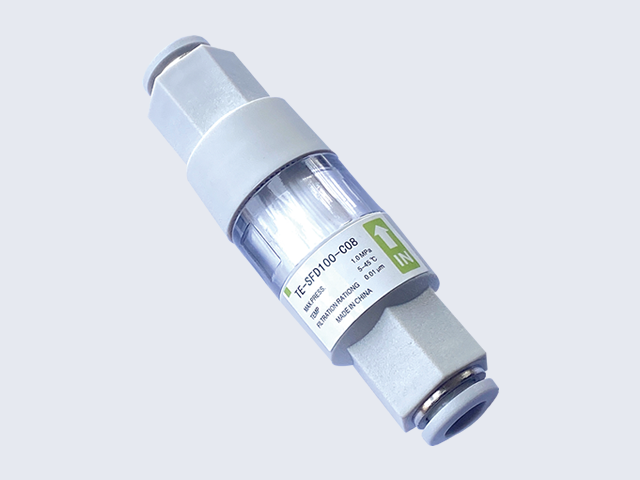

Clean Air filter
TE-SFD series
(Hollow fiber filter element)
● Filtration accuracy: 0.01μm (capture
efficiency 99.99%)
● Initial pressure drop: 0.03MPa (import
pressure 0.7MPa, maximum flow rate)
● Maximum operating pressure: 1.0MPa (at
20℃)
|
|
Single-use type (filter cartridge not replaceable) |
Clamping type (with replaceable filter element) |
|||||
|
Air flow L/min |
~60 |
~80 |
~100 |
~300 |
~400 |
~500 |
|
|
Port |
One-touch fitting |
o4 |
o6 |
o8 |
o8 |
o10 |
o12 |
|
Internal thread |
- |
- |
Rc1/4,G1/4 NPT1/4 |
- |
- |
Rc1/4,G1/4 NPT1/4 |
|
|
Shell material |
Resin |
Resin |
|||||
|
Fluid |
Air，（Nitrogen） |
||||||
|
Filtration rating |
0.01μm(99.99%) |
||||||
|
Initial pressure loss |
0.03MPa or less (at primary pressure of 0.7MPa and max. air flow capacity) |
||||||
|
Maximum operating pressure（at 20℃） |
1.0 Mpa（0.99MPa for nitrogen） |
||||||
|
Operating temperature |
5-45 ℃ |
||||||
Note: The clean air filter is designed to
remove solid particles and cannot be used for the separation of water and oil.
Drawing
