TE7420A valves electric actuator is applies to SPDT. This valves electric actuator is compatible with valves of all heating ventilation air conditioning.

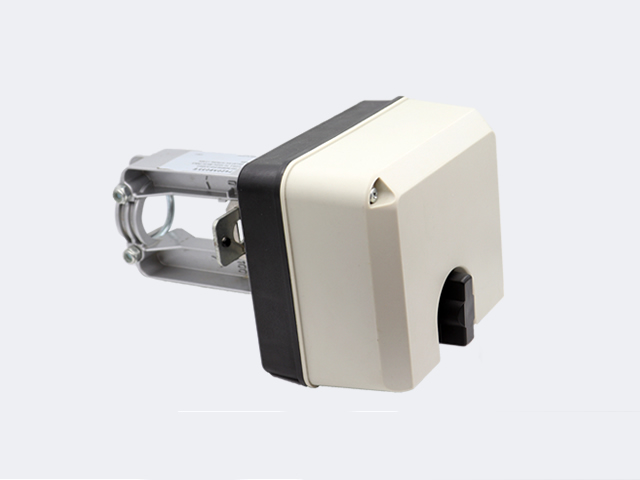

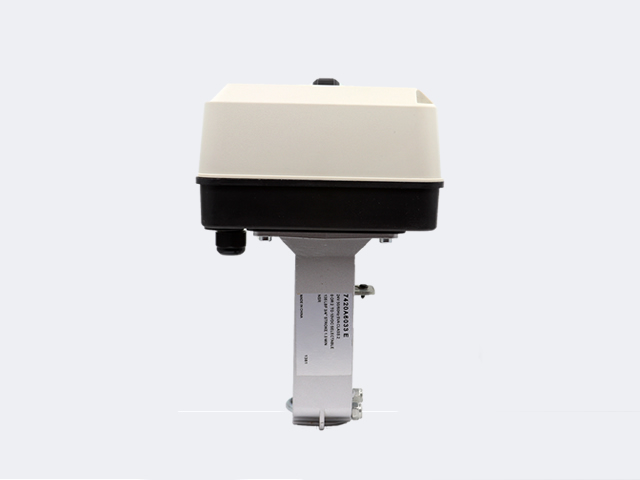

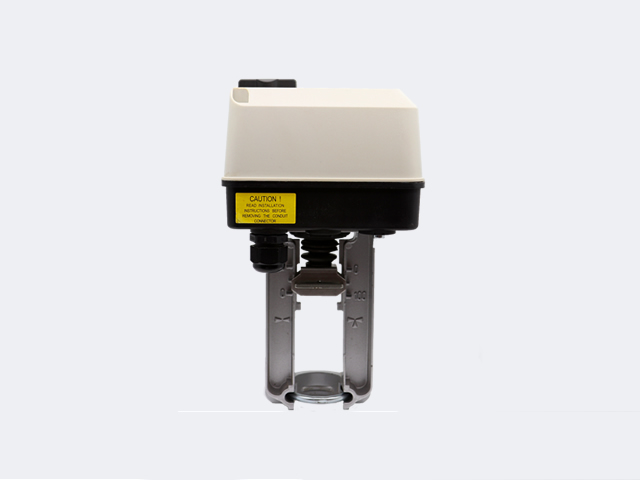

TE7420A Valves Electric Actuator
TE7420A valves electric actuator is applies to SPDT. This valves electric actuator is compatible with valves of all heating ventilation air conditioning.
|
Model |
Inch（mm） |
60Hz Run time（s） |
Description |
|
TE6421A |
3/4（20） |
95 |
linear electric valve actuators |
|
TE7421A |
|||
|
TE6421B |
1-1/2（38） |
175 |
|
|
TE7421B |
· Weight: 5.1 pound (2.3 kg)
· Input power: 24V AC (+10%, -15%), 60Hz
· Power supply: Max 24V AC
· TE7421：0~10Vdc or 2~10Vdc
· Product shell: ABS plastic
· Bases and Holders: Aluminium Die Casting
· Thrust: 405lbf (1800N)
· Cable interface: 2 pcs 1/2
· Ambient temperature range：14~122 ℉（-10~50 ℃）
· Storage Temperature Range：-40~158 ℉（-40~70 ℃）
· Humidity range：relative humidity 5~95% no condensation
· Installation is simple and quick
· Free from adjustment
· Type TE7421 with position feed back signal
· limit switch of terminal power
· With manual station
· Synchronous motor
· Corrosion-proof design
