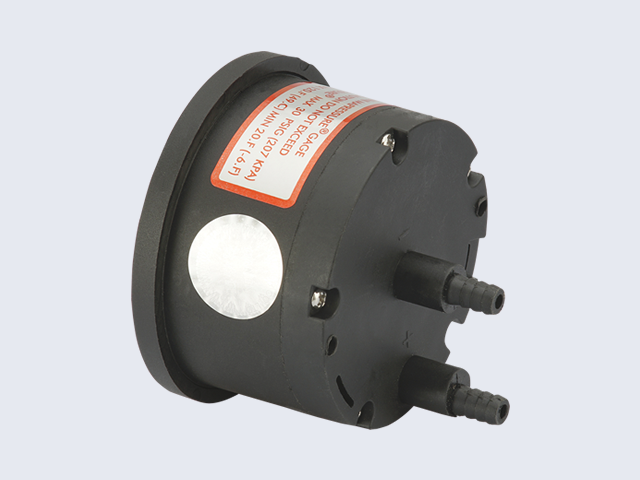

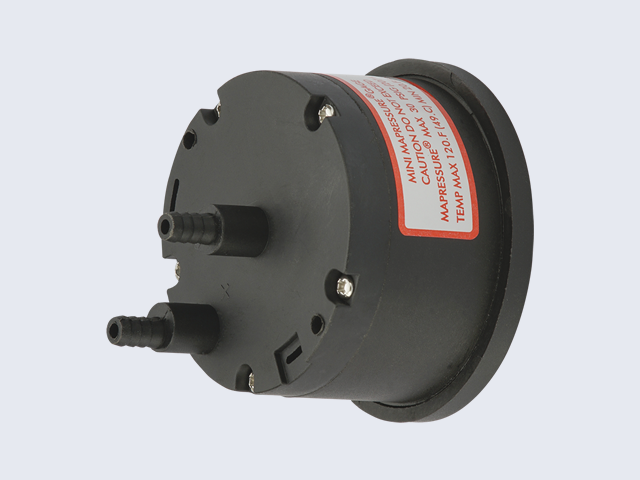

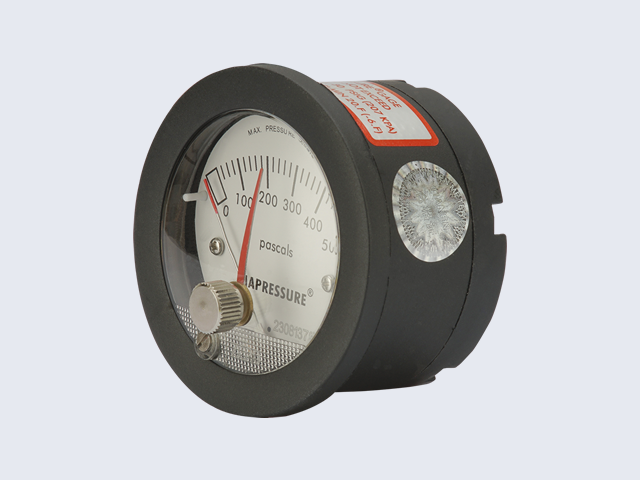

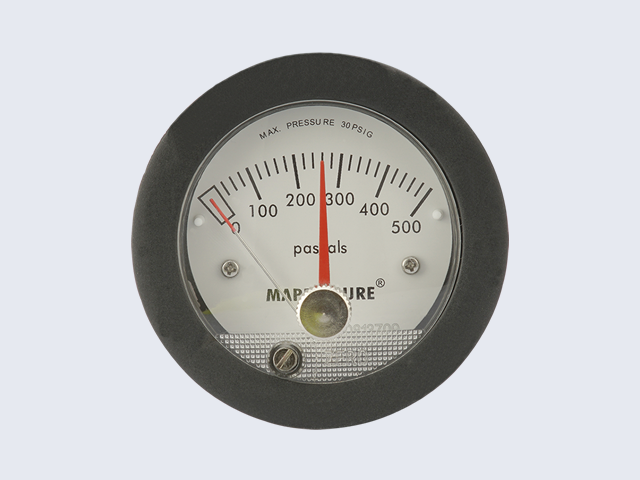

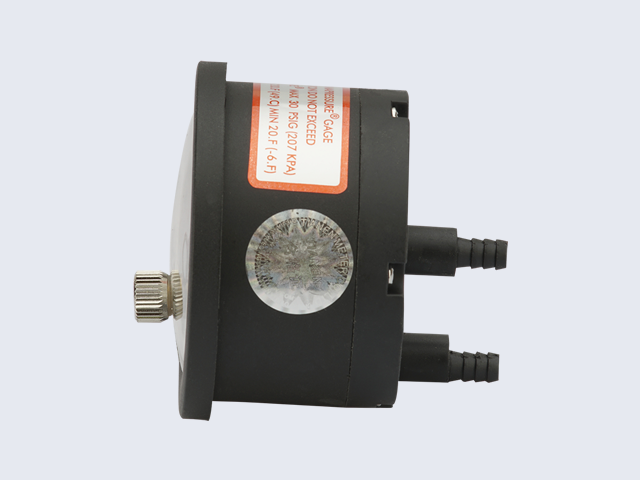

Series TE5000 Multiple-Pointer Mini Differential Pressure Gauge
Series TE5000 Multiple-Pointer Mini Differential Pressure Gauge
Series TE5000 Multiple-Pointer Mini Differential Pressure Gauge

Series TE5000 Mini Multiple-Pointer Differential Pressure Gauge

INTRODUCTION

Series TE5000 Mini Differential Pressure Gauges are typical of the concise structure, small size, lower energy consumption and high accuracy. This product is fully applicable to any occasion. The shell is made from mineral and Glass-filled Nylon. And the lens is made from polycarbonate. The gauges can work under heavy pressure, blast, and the maximum pressure can be up to 30 pound/ square inch. 2.067 mb. When pressure is too great, the rupture disk which is connected to diaphragm can protect the product.

SPECIFICATION

Size

2-29/32 inch (73.82mm) × 2-7/16 inch (61.93mm)

Weight

6 oz (170.1g)

Rated total pressure


Rated total pressure: 50 pound/ square inch(3.445 milliBar)

Accuracy

±5% of FS at 70°F (21.1°C)

Connections

Barbed, for 3/16" ID tubing (standard); 1/8" male NPT (optional)

Housing

Glass filled nylon; acrylic lens

Temperature Limits

20 to 120°F (-6.67 to 48.9°C).

Paint

Black

Standard fitting

2pcs 4-40×1-5/8 inch construction bolts

2pcs 4-40 hexagonal nuts

1pcs 0050 inch hexagonal spanner

1pcs bracket of panel mounting

Specifications

125Pa, 250Pa, 500Pa, 750Pa, 1KPa, 2KPa.
