TEB930 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.

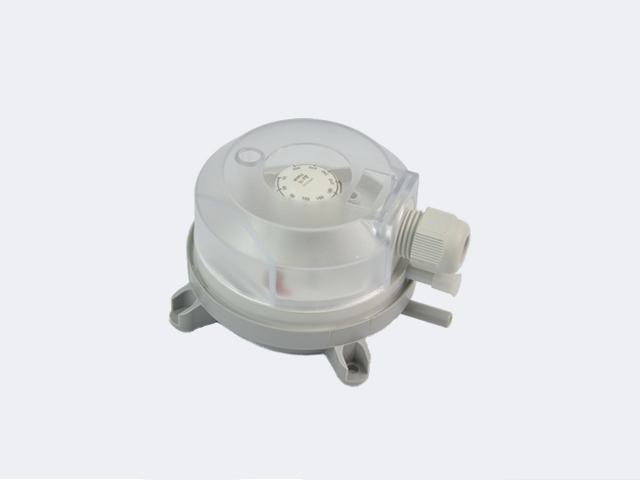

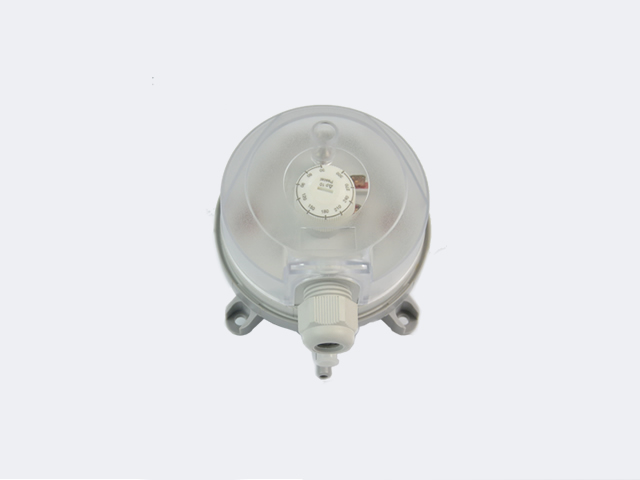

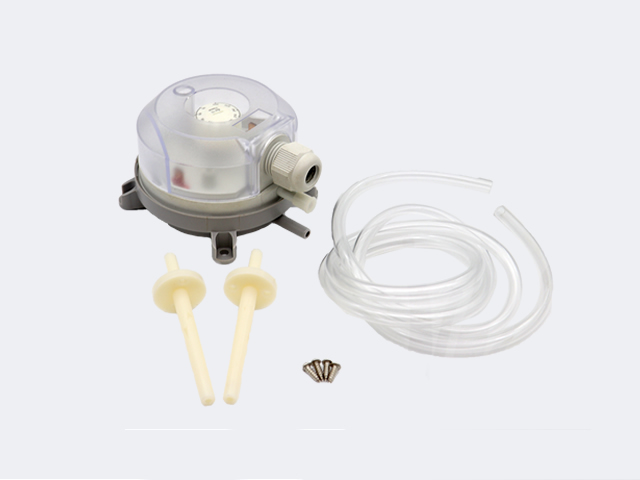

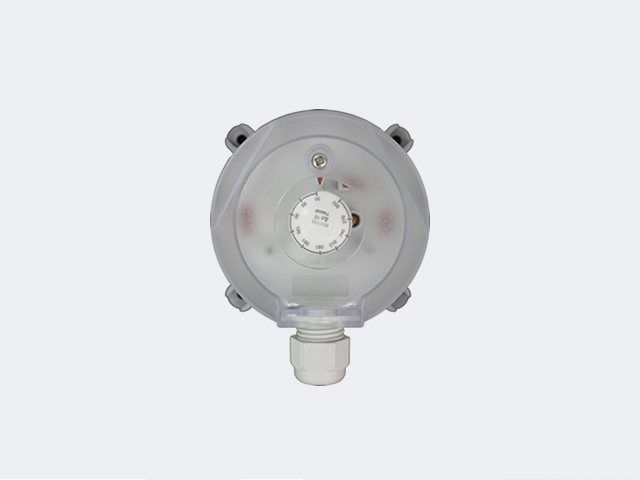

Series TEB930 Differential Pressure Switch
INTRODUCTION
TEB930 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.
SPECIFICATION
|
Model |
TEB930 |
|
Media |
Air, non-combustible and non-aggressive gases. |
|
Max Operating |
10kPa |
|
Mounting |
Diaphragm in any vertical plane |
|
Degree of Protection |
IP54(With Cover), IP00(without Cover) |
|
Operating Temperature |
-40℃ to + 85℃ |
|
Range |
930.80 20-200Pa 930.81 30-300Pa 930.82 50-500Pa 930.83 200-1000Pa 930.85 500-2500Pa 930.86 1000-4000Pa |
|
Contact Arrangement |
SPDT |
|
Electrical Rating |
Resistance: initaial:＜50 milliohms Current: 1.5A(0.4A)/250V |
|
Terminal |
6.3mm×0.8blade or screw terminal |
|
Connection |
Φ6.0 mm for tube connection |
DIMENSIONAL DRAWING
