TEB604 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.

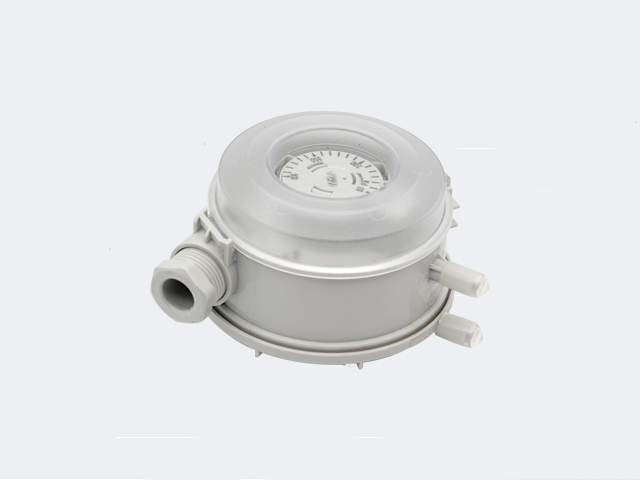

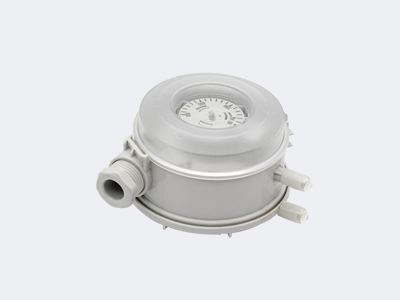

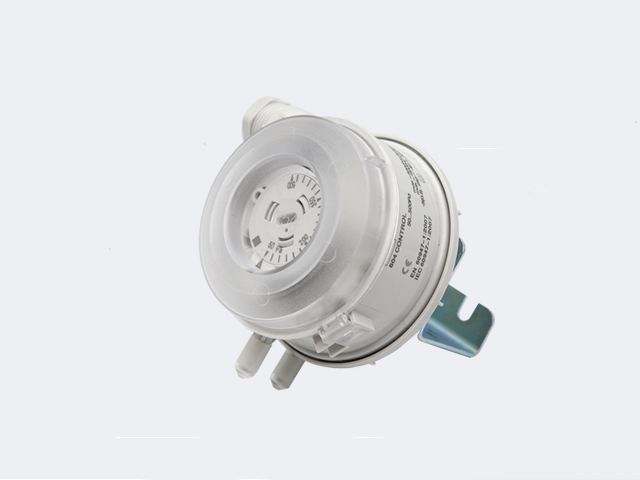

Series TEB604 Differential Pressure Switch
INTRODUCTION
TEB604 switch is capable to sense tiny pressure change and widely used to control the flue of aerator, to monitor and fan and air conditioner; It is also suit for over heating protection and frost protection in industrial cooling system. Due to its outstanding design, the setpoint can been adjust visually.
SPECIFICATION
|
Model |
TEB604 |
|
Range |
30~1000Pa |
|
Media |
Air, non-combustible and non-aggressive gases. |
|
Max Operating |
10kPa |
|

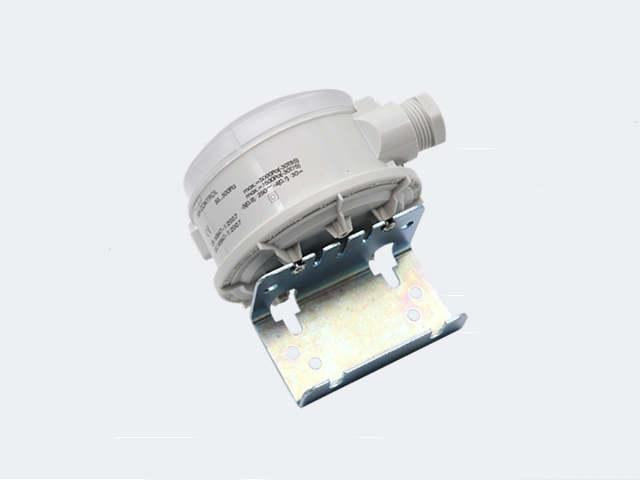

Mounting |
Diaphragm in any vertical plane |
|
Degree of Protection |
IP54(With Cover), IP00(without Cover) |
|
Operating Temperature |
-40℃ to + 85℃ |
|
Optional Range |
Model: 604-0 Differential pressure range: 20-200 Pa Model: 604-1 Differential pressure range: 20-300 Pa Model: 604-2 Differential pressure range: 30-300 Pa Model: 604-3 Differential pressure range: 50-500 Pa Model: 604-5Differential pressure range: 100-1000 Pa |
|
Contact Arrangement |
SPDT |
|
Electrical Rating |
Resistance: initaial:＜50 milliohms Current: 1.5A(0.4A)/250V |
|
Terminal |
6.3mm×0.8blade or screw terminal |
|

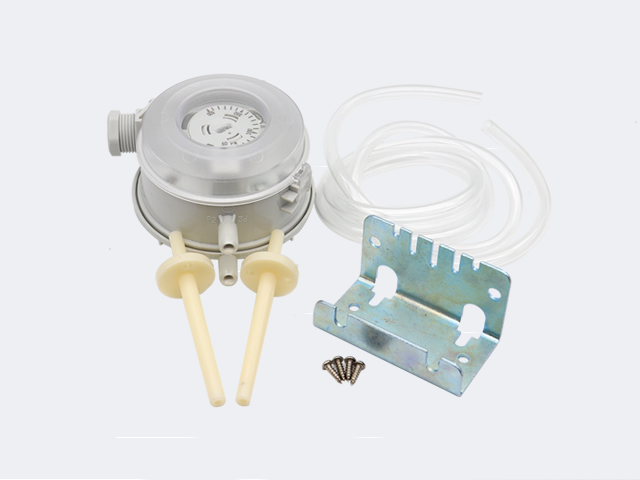

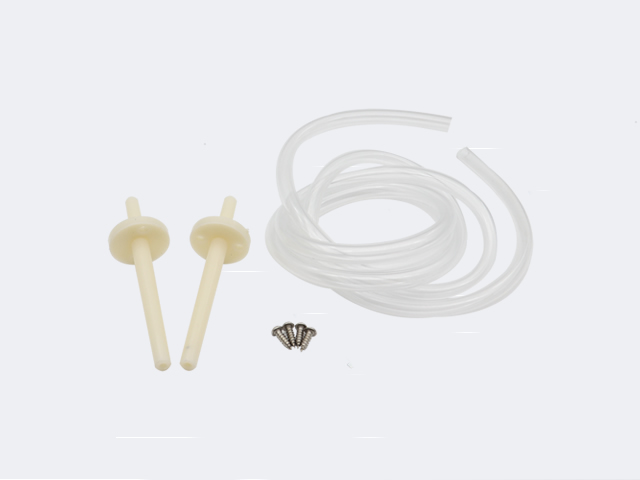

Connection |
Φ6.0 mm for tube connection |
Conversion: 1in/ H₂O =249Pa 1mbar=100Pa
