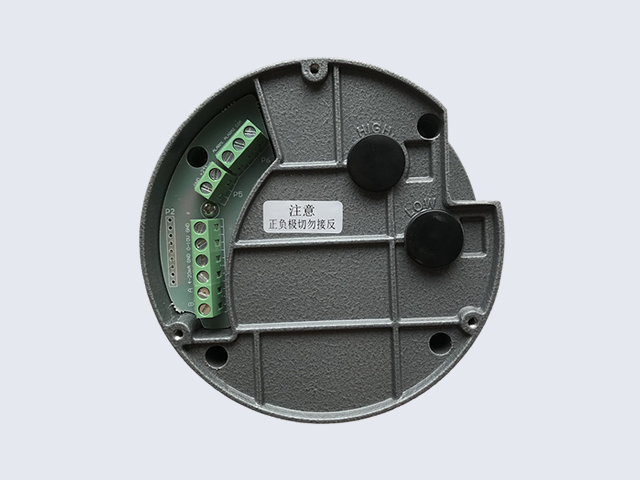

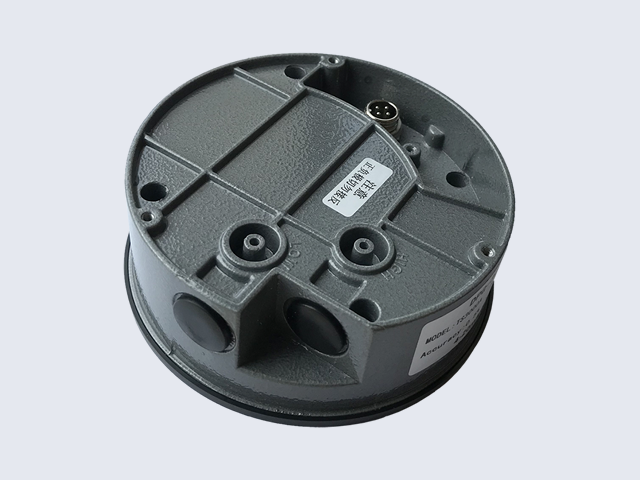

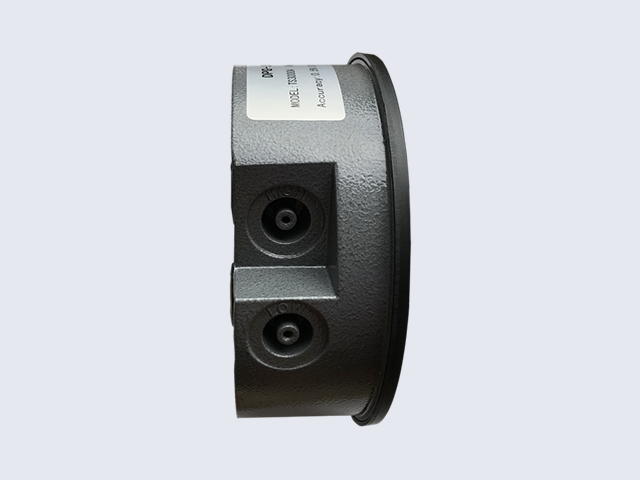

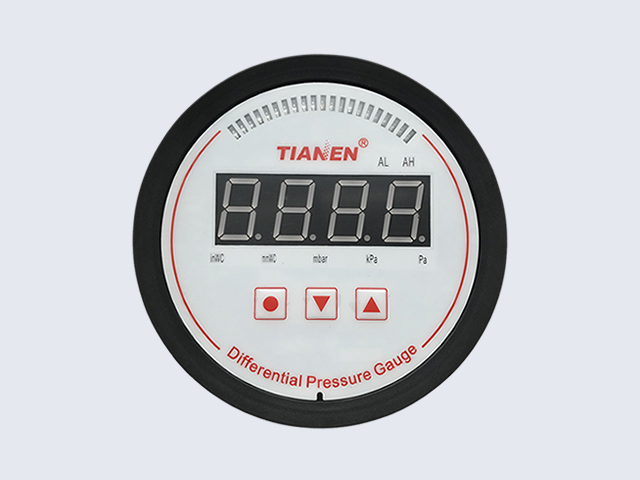

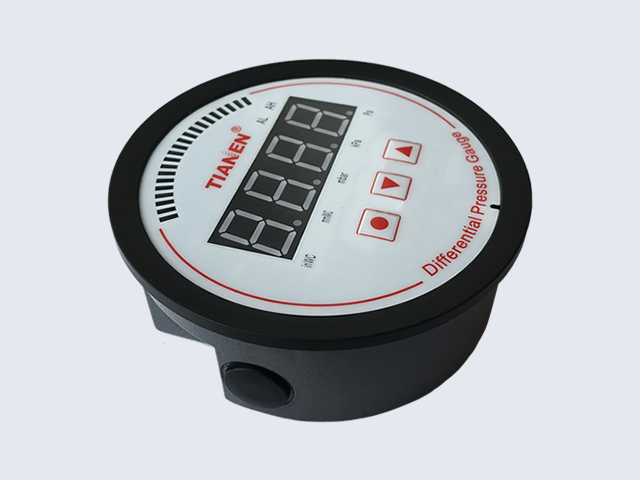

TS3000A Digital Differential Pressure Transmitter
TS3000A Digital Differential Pressure Transmitter
TS3000A Digital Differential Pressure Transmitter

【Prev Products】
【Next Products】


Product Description


Specification
item
Differential pressure transmitter
Place of Origin
China
Zhejiang
Brand Name
TIANEN
Model Number
TS3000A
Medium
air and non-flammable, non-corrosive gas
Medium temperature
0-60 ° C
Working environment
-20 ° C ~ + 85 ° C
Differential pressure range
multiple ranges, overload 3xFS, breaking pressure 10xFS
Communication output
RS485
Long-term stability
± 0.1% FS / Year
Temperature drift coefficient
<0.03% FS / ° C
Power supply
24VDC ± 3VDC
Case material
Aluminum Case
Certificate
CE
Type
TS3000A
Accuracy
± 0.5% FS
Connection
1/8"
MAIN FUNCTIONS:
Detection range:
1. -500Pa——500Pa;
2. -250Pa——250Pa;
3. -125Pa——125Pa;
4. -60Pa——60Pa;
5..… (Add ranges according to your actual need)
Output method:
Voltage output: 0-10V;
Current output: 4-20mA;
Switching alarm output: 2 normally open + 2 normally closed;
Bus: RS485 (Modbus).
Packing


TS3000A Digital differential pressure transmitter
